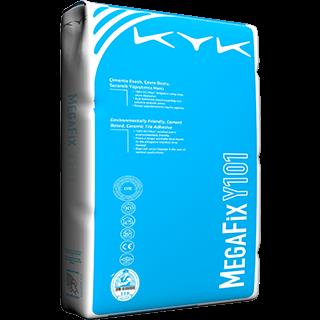

YAP.HARCI Megafix GRİ KÜTAHYA 25 kg *****

Initial tensile adhesion strength ≥ 0.5 N / mm² (EN 12004-2: 2017, 8.3)
tensile adhesion strength after immersion in water ≥ 0.5 N / mm² (EN 12004-2: 2017, 8.3)
Tensile strength after aging with heat ≥ 0,5 N / mm² (EN 12004-2: 2017, 8.3)
Freeze - thaw cycles after the tensile adhesion strength ≥ 0.5 N / mm² (EN 12004-2: 2017, 8.3)
tensile adhesion strength after open time (30 min. after) ≥ 0.5 N / mm² (EN 12004-2: 2017, 8.1)
Slip ≤ 0.5 mm (EN 12004-2: 2017, 8.2)
Reaction to fire class A1 (EN 13501-1)

These values under laboratory conditions; 23 ± 2 ° C and 50 ± 5% relative humidity experiments on the environment has been obtained as a result. The values given above may vary depending on the substrate and ambient conditions.

Usability time of the ready mortar - Pot life: Up to 3 hours
Work life: Maximum 30 minutes.
Adjustment time: 15 min.
The time required for joint applications: 24 hours
The time required for the opening to traffic of the floor: 24 - 48 hours

These values under laboratory conditions; 23 ± 2 ° C and 50 ± 5% relative humidity experiments on the environment has been obtained as a result. The values given above may vary depending on the substrate and ambient conditions.

a. Chemical Structure: cementitious tile adhesive mortar
b. Dry Density: 1.30 ± 0.05 g / cm³
c. Mortar Density: 1.85 ± 0.05 g / cm³
D. Grain Size: ≤ 600 .mu.m
to. Color: Gray, White
f. Temperature Range: -15 ° C and + 80 ° C

Wt% 22 - 26 to be mixed with water in the ratio. (5.5 to 25 kg packing - 6.5 liters of water)

10x10 cm and 10x15 cm and smaller ceramic dimensions, 6x6x6 with scallops
One-sided adhesive: 3,5 - 4.0 kg / m²
Double-sided adhesive: 5.0 - 5.5 kg / m²

from 10x15 to 25x40 cm, 10x15 cm and 33x33 ceramic dimensions, 8x8x8 with scallops
One-sided adhesive: 4.5 to 5.0 kg / m
Double-sided adhesive: 6,0 - 6,5 kg / m²

from 10x15 to 25x40 cm, 10x15 cm and 33x33 size ceramic, 10x10x10 with scallops
One-sided adhesive: 5.0 - 5.5 kg / m²
Double-sided adhesive: 6.5 to 7.0 kg / m

MegaFix; A total of 54 bags of 25 kg net paper bags 80x100 cm measured pallet (1350 kg) are presented.

a. Approvals / Standards
• EN 12004
b. Look Works. Exposure No.
• Public Look. Item No .: 04 013/1

QUALITY CERTIFICATES
• TSA
• CE
• EPD

Substrates
Indoor Wall;
• cement based plasters
• Concrete (BB MEGAFILM applied MEGAFILM or liner)
Interior and Exterior Floor;
• cementitious screeds
• Concrete (BB MEGAFILM applied MEGAFILM or liner)

Surface Preparation
• Surface dry, clean, solid and must be free from dust, oil, dirt or adhesion inhibiting materials from the surface to be cleaned, slurry, binders such as cement residues scraped.
• dusty surfaces should be cleaned behind the tiles with water.
• Depth 6 for implementing error repair adhesive mortar surface which is more than 1 cm - 8 hours before megatam megatam I or K must be made. It becomes necessary to use structural repair mortar megatam in the structural or structural megatam K should be used.
• After surface cleaning, surface to compensate for the increase of adhesive strength and absorbency of the substrate should be primed with single coat MEGAFILM lining and 1 - 2 hours should be allowed to dry.
• exposed concrete surfaces prior to proceeding with the application surface MEGAFILM BB concrete lining to increase the adhesive strength must be primed with a single layer, and minimum allowed to dry for 3 hours.
• Wet applications megaizo primed surface with ceramic tiles recommended primer before tire waterproofing product 10 must be observed. these surfaces minimum C2 class of adhesives are preferred.

Application Methods
• MegaFix adhesive mortar, determined according to the structural condition of the ceramic size and the surface is applied with a notched trowel.
• MegaFix the surface during application must be careful not to create the film. Adhesive film surface was scraped form the surface and be reused.
• placing coating material surface and the tire seating surfaces should be provided with tipped pestle.
• grouting process, it can be passed at least 24 hours after bonding.
• Indoor and outdoor applications Double-sided bonding process in the large-sized ceramic 20x20cm application should be applied.
33x33 cm or 25x40 cm • Do not use location for the wall covering material of the ceramic measuring large size.

Practice Recommendations
• It is recommended that bonding with light-colored walls and white floor tiles with glass bricks MegaFix.
• megalatex be used to improve product performance.
• After the mixed product must be used within the pot life. have filled the pot-life products should not be used during application.
• prepared mortar of lime, cement, not add any foreign material, such as plaster.
• extra water mixture must be topped up.
• Do not apply on solid surfaces. strength of the former surface and the carriage should be checked prior to application.
• Application during and after the surface must be protected from contact with water and air flow must be prevented.
• The risk of frost within 24 hours, should not be applied on surfaces which are frozen or ice melt.
• Attention should be paid to exposure to direct sunlight in hot weather the material should be done with cold water and mix.
• Excessive wind should not be applied on hot surfaces or direct sun-exposed, media before practice if necessity in these environments, and should be ready for surface applications.
• In rainy weather application must be made, the application must be protected from rain with surface for 24 hours.
• You can call our technical support line at various surface treatments. (TEL: 444 4595)

Surface and Ambient Temperature
During the application surface and ambient temperature should be between + 5 ° C and + 35 ° C.
